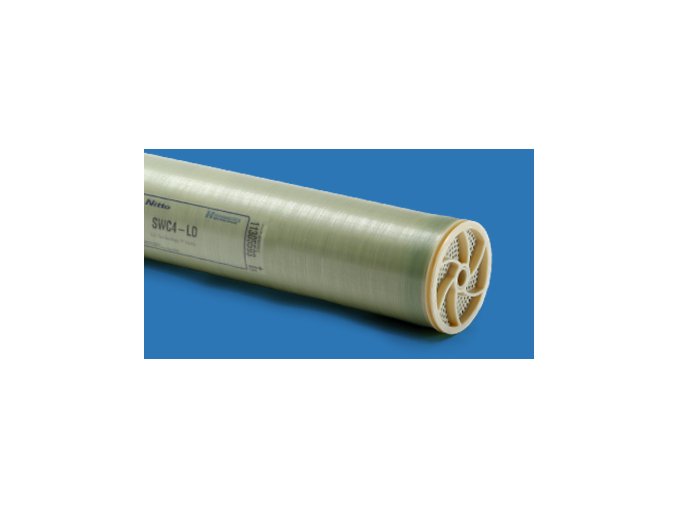

Hydranautics SWC4-LD



Individual offer for 10+ pcs. Please use our ask form.

SWC4 are the highest salt rejecting seawater reverse osmosis  membranes used to treat varying levels of seawater salinities and produce low TDS permeate. SWC4 is popularly used in the treatment of sea and highly brackish waters. SWC4 seawater reverse osmosis  membranes are available in two different types of variants, LD and MAX. Low differential LD Technology® models are offered to minimize colloidal fouling when used with conventional pre-treatment equipment. They offer consistently low feed pressures and highest duration between two successive cleanings.

The MAX models have a 440 ft2 (40.9 m2) active membrane surface area. They provide excellent performance with high TDS and boron removal from warm waters.

Availability In stock (>5 pcs)
€664
€803,44 incl. VAT

Product code 24
Brand Hydranautics
Category Sea Water
Warranty 1 year

General Product Description*
Size: 8″ diameter & 40″ length
Permeate Flow: 6,500 gpd (24.6 m3 /d)
Salt Rejection: 99.8% (99.7% minimum)
Configuration: Low Fouling Spiral Wound
Membrane Polymer: Composite Polyamide

Product Use and Restrictions
Maximum Applied Pressure: 1200 psig (8.27 MPa)
Maximum Chlorine Concentration: < 0.1 ppm
Maximum Operating Temperature: 113 °F (45 °C)
pH Range, Continuous (Cleaning): 2-11 (1-13)
Maximum Feedwater Turbidity: 1.0 NTU
Maximum Feedwater SDI (15 mins): 5.0
Maximum Feed Flow: 85 gpm (19.3 m3 /h)
Maximum Pressure Drop for Each Element: 15 psi (0.10 MPa)

*Please refer to standard testing conditions and details in the enclosed datasheet
Weight 15 kg
