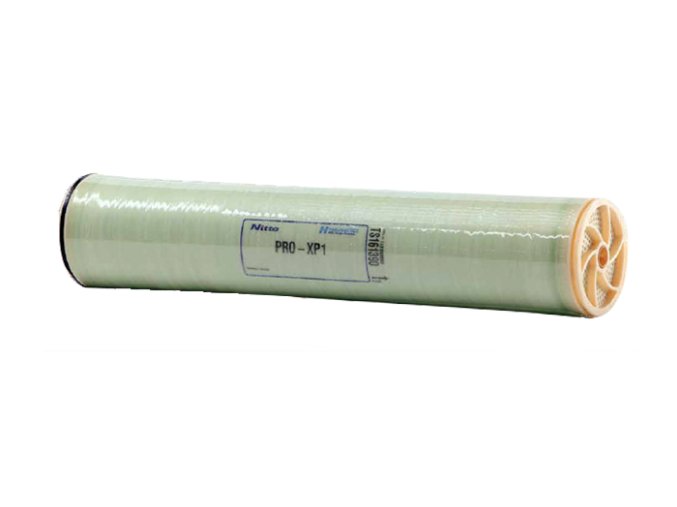

Hydranautics PRO-XP1

PRO-XP1 Ultra High-Pressure Reverse Osmosis

The Hydranautics® PRO-XP series is a set of ultra high-pressure spiral wound membranes customized specifically for
challenging industrial process applications such as brine dewatering. These membranes are based on existing Hydranautics
high performance membrane products which have been specially designed to treat a variety of industrial feed streams including
high fouling, high TDS, or chemically aggressive feeds.

Availability	In stock (1 pcs)
Measure price	€2 604 / 1 pcs
€2 604 €3 150,84 incl. VAT

Parameters

Product code	499
Brand	Hydranautics
Brand's website	membranes.com/
Category	Special Applications
Warranty	1 year

Print Question

Description
Parameters
Brand
Files
Discussion

Description

General Product Description*
Size:	8″ diameter & 40″ length
Permeate Flow:	8,000 gpd (30.3 m3 /d)
Salt Rejection:	99.8% (99.7% minimum)
Configuration:	Spiral Wound
Membrane Polymer:	Composite Polyamide
Membrane Active Area:	365 ft2 (33.9 m2)
Feed Spacer:	34 mil (0.86 mm)

Product Use and Restrictions
Maximum Applied Pressure:	1800 psig (12.4 MPa)
Maximum Chlorine Concentration:	< 0.1 ppm
Maximum Operating Temperature:	(Graph in a datasheet)
pH Range, Continuous (Cleaning):	2-11 (1-13)
Maximum Feedwater Turbidity:	1.0 NTU
Maximum Feedwater SDI (15 mins):	5.0
Maximum Feed Flow:	85 gpm (19.3 m3 /h)
Maximum Pressure Drop for Each Element:	15 psi (0.10 MPa)
*Please refer to standard testing conditions and details in the enclosed datasheet

Weight

16 kg
