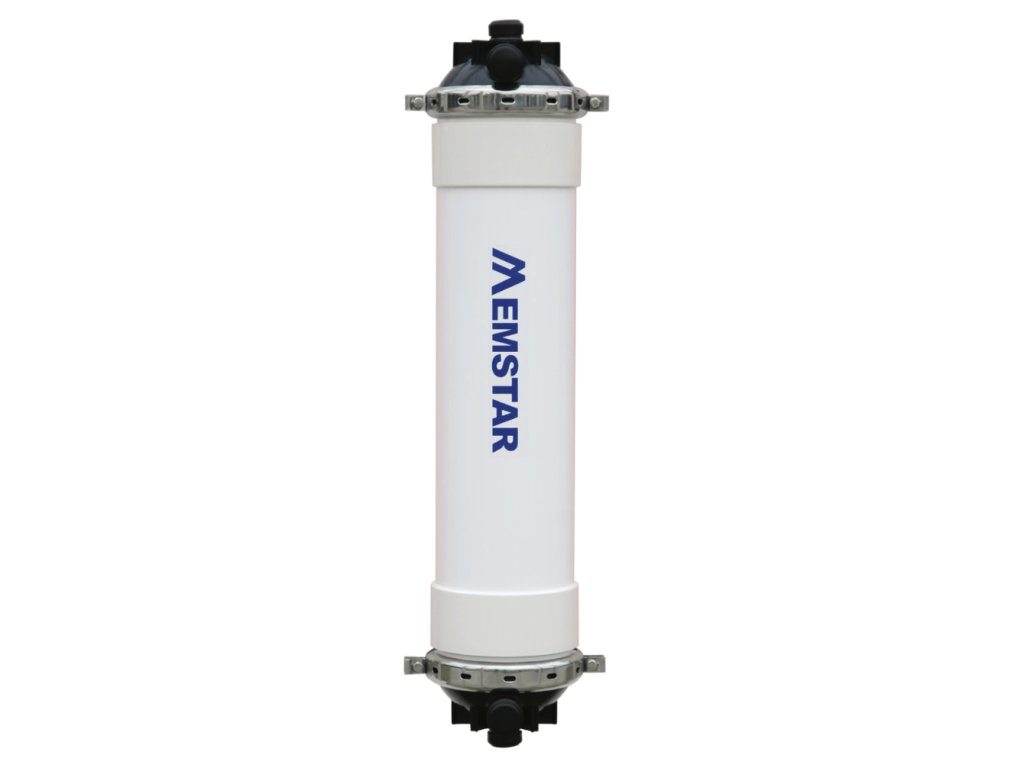

Memstar UF-1015ET (80m2)



10” Module Series - 3G TIPS

Memstar pressurized ultrafiltration (UF) hollow fiber modules combine advanced engineering concepts and best-in-class TIPS fiber technology to provide the highest performing ultrafiltration products in the market. Our pressurized UF modules are used to remove suspended solids, including bacteria, viruses, and organic and inorganic compounds. Typical applications include the treatment of tertiary wastewater, surface water, and seawater for RO pre-treatment.

Key Features and Benefits

• High mechanical strength = Long life
• Extreme caustic and oxidant tolerance = Long life, challenging applications
• Industry leading membrane surface area = Fewer racks, smaller footprint
• No backwash = High recovery, less waste, lower CAPEX

Memstar – The World’s Largest Manufacturer of Hollow Fiber UF Membranes

Memstar ultrafiltration membranes – a trusted solution for efficient removal of particles, bacteria, and contaminants. Made with durable PVDF hollow fibers, they ensure clean, safe water across various applications, including drinking water treatment, RO pretreatment, and industrial reuse.
Also available as retrofits for easy replacement of existing modules.

Availability In stock
Measure price €2 591 / 1 pcs
€2 591
€3 135,11 incl. VAT

Product code 445
Brand Memstar
Category Ultrafiltration Membranes


UF-1015ET

Specification Value
Membrane Material PVDF (TIPS)
Nominal Pore Size (µm) 0.04
Filtration Mode Outside-in
Housing Material uPVC/ABS
Potting Material Epoxy/Polyurethane
Filtration Surface Area (m²) [ft²] 80 [861]
Typical Filtrate Flowrate (m³/hr) [gpm] 4.4 - 5.6 [19 - 25]
Column Volume (L) [gal] 40 [10.6]
Weight (kg) [lbs] 44 [97]
L1 (mm) [inches] 1,606 [63.2]
L2 (mm) [inches] 1,730 [68.1]
L3 (mm) [inches] 79 [3.1]
L4 (mm) [inches] 45 [1.8]
L5 (mm) [inches] 172 [6.8]
R (mm) [inches] 250 [9.8]
Feed/Drain Port DN50
Filtrate Port DN50
Concentrate Bleed Port DN50
Air Inlet Port Ø25/19
Weight 45 kg

Be the first who will post an article to this item!

Add a comment
Do not fill out this field:
Security check

Memstar is a global leader in membrane technology, specializing in high-performance PVDF hollow fiber ultrafiltration (UF) membranes for both industrial and municipal water treatment. With over 220 successful installations worldwide treating more than 10 million m³ of water per day, Memstar’s proven solutions are trusted across the globe. Backed by more than 150 patents, the company’s industry-leading TIPS PVDF technology ensures exceptional reliability and performance.
