8" BEL Side Port Vessel


8" BEL Side Port Vessel

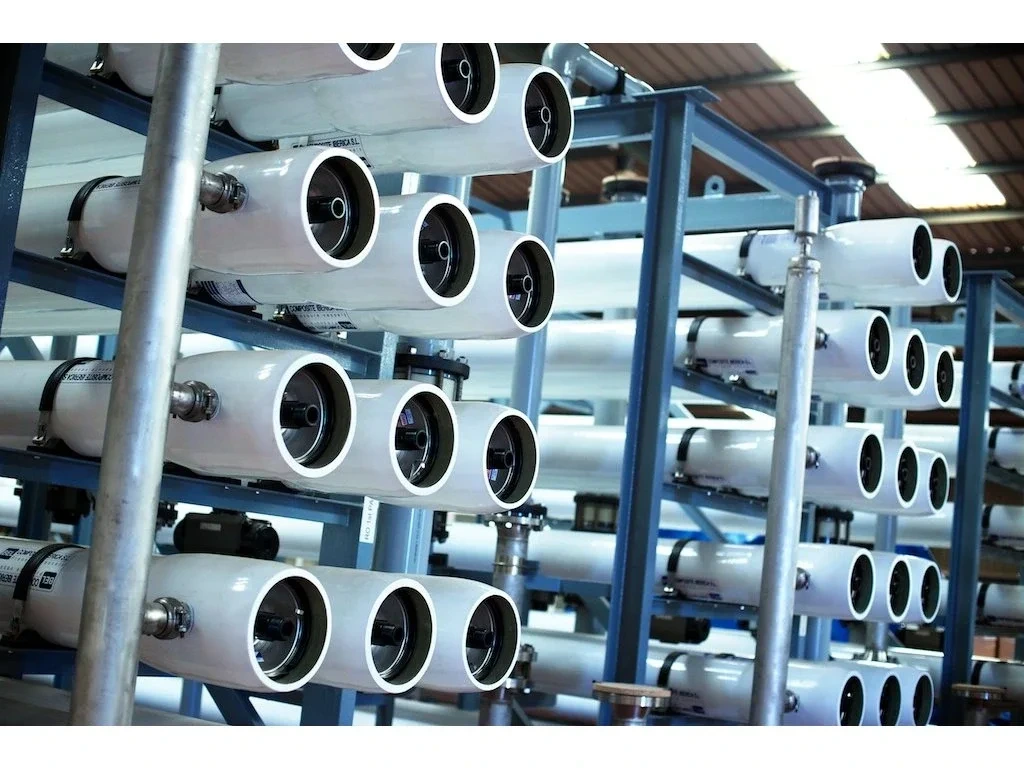

BEL 8" Side Port Vessels designed to accommodate standard 8" membranes, from 1 membrane up to 8 membranes. The vessel body produced by a continuous filament winding process and the feed and concentrate pipe connections are located on the side of the vessel body. The trust ring is a part of the End Cap and available on both sides, keeps the membranes tight all time and reduce the burnout of the O-rings. Multiple ports 8" vessels with 3 and 4 Side Ports 1.5", 2", 3" and 4" are available.

Availability Upon request (1 pcs)
€664
€803,44 incl. VAT


Parameters

Product code 525
Brand Bel Pressure Vessels
Brand's website belvessels.com/
Category Pressure Vessels


Description

Type - Port - Psi 1M 2M 3M 4M 5M 6M 7M 8M
BEL8 - S - 300 € 664 € 707 € 750 € 823 € 902 € 953 € 1010 € 1126
BEL8 - S - 450 € 794 € 837 € 894 € 996 € 1053 € 1126 € 1197 € 1248
BEL8 - S - 600 €815 € 880 € 939 € 1024 € 1083 € 1162 € 1212 € 1277
BEL8 - S - 1000 € 931 € 982 € 1083 € 1162 € 1248 € 1313 € 1364 € 1516
BEL8 - S - 1200 € 1010 € 1047 € 1112 € 1256 € 1313 € 1386 € 1472 €1587

Ex Works BEL

Scope Of Supply 8" vessels:

- vessel with 2 X 1.5" side / end ports and complete head assembly per BEL drawing

- 2 adapters

- 2 or 3 saddles and 2 straps

300-600psi : S.S. ports     /     1000-1200psi : S.D (Super Duplex) ports

dia S.S. S.D.
1.5" € 45 € 52
2" € 55 € 70
2.5" € 85 € 98
3" € 111 € 125
4" € 169 € 195

R.O. Membranes loading
