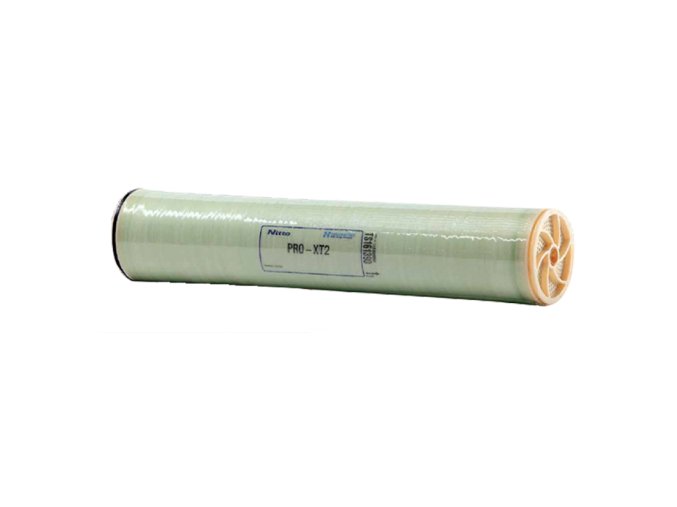

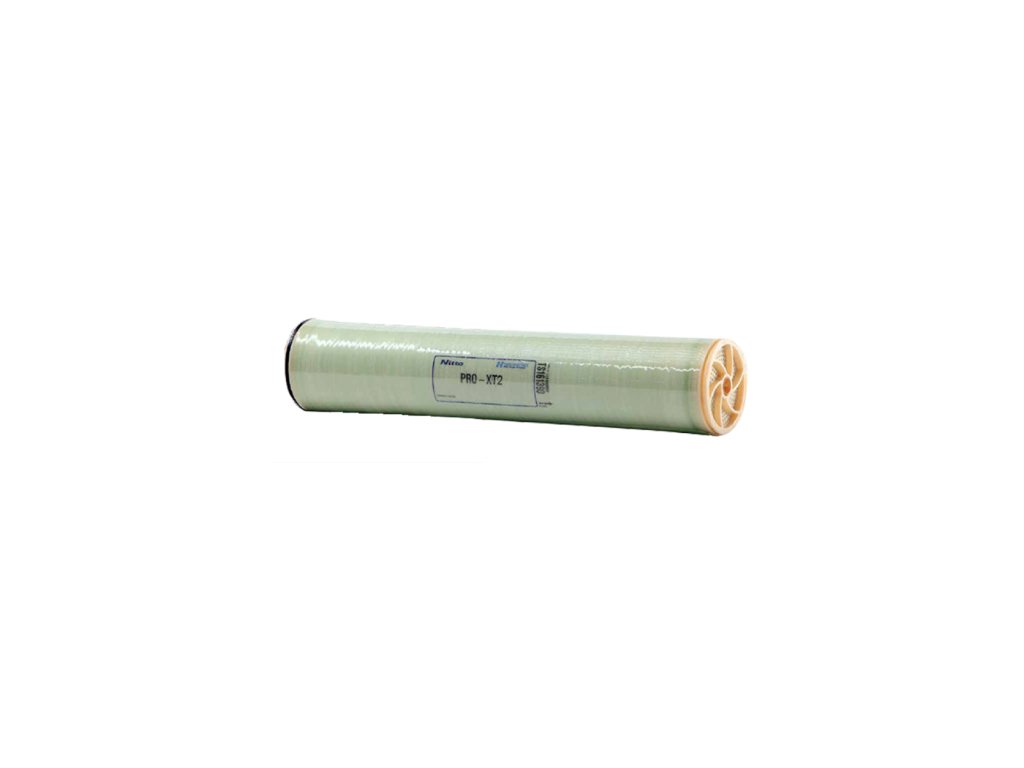

Hydranautics PRO-XT2

PRO-XT2 Ultra High Temperature Reverse Osmosis

The Hydranautics® PRO-XT series is a set of spiral wound membranes customized specifically for high temperature industrial
applications. These membranes are based on existing Hydranautics high performance membrane products which have been
specially designed to treat high fouling or chemically aggressive process feed streams.

Availability	In stock (1 pcs)
Measure price	€1 569 / 1 pcs
€1 569 €1 898,49 incl. VAT

Parameters

Product code	502
Brand	Hydranautics
Brand's website	membranes.com/
Category	Special Applications
Warranty	1 year

Print Question

Description
Parameters
Brand
Files
Discussion

Description

General Product Description*
Size:	8″ diameter & 40″ length
Permeate Flow:	6,230 gpd (23.6 m3 /d)
Salt Rejection:	99.7% (99.6% minimum)
Configuration:	Low Fouling Spiral Wound
Membrane Polymer:	Composite Polyamide
Membrane Active Area:	340 ft2 (31.6 m2)
Feed Spacer:	34 mil (0.86 mm)

Product Use and Restrictions
Maximum Applied Pressure:	(Graph in the datasheet)
Maximum Chlorine Concentration:	< 0.1 ppm
Maximum Operating Temperature:	(Graph in the datasheet)
pH Range, Continuous (Cleaning):	2-11 (1-13)
Maximum Feedwater Turbidity:	1.0 NTU
Maximum Feedwater SDI (15 mins):	5.0
Maximum Feed Flow:	55 gpm (19.3 m3 /h)
Maximum Pressure Drop for Each Element:	10 psi (0.07 MPa)
*Please refer to standard testing conditions and details in the enclosed datasheet

Weight

16 kg
