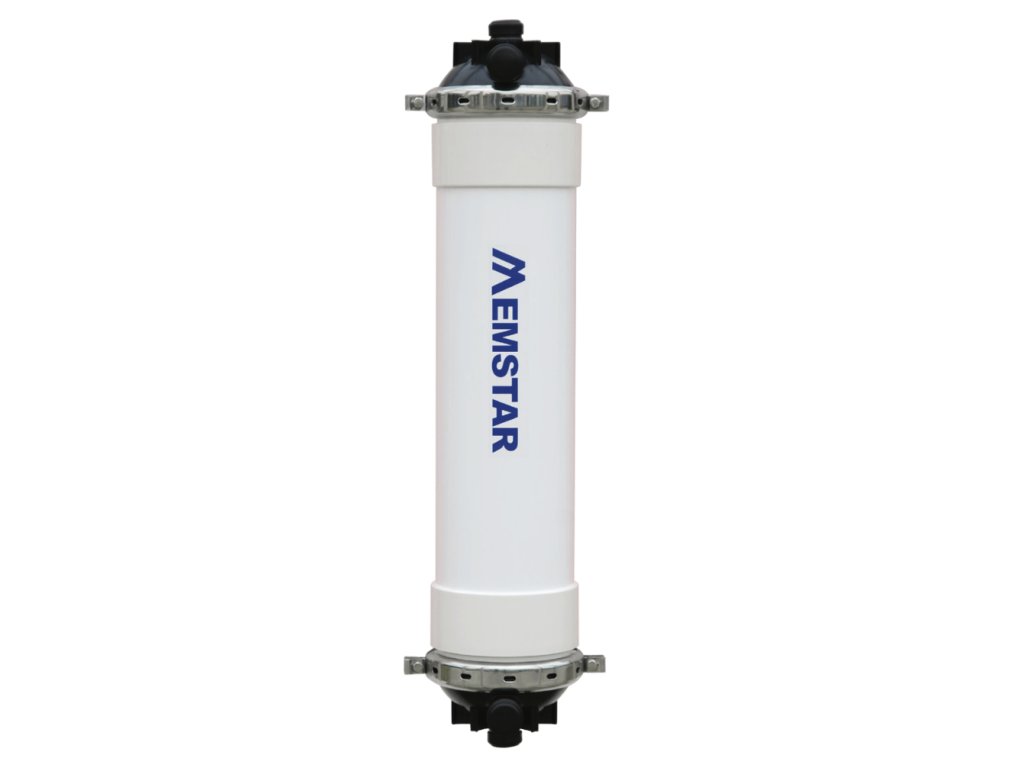

Memstar UF-0717E (56m2) - Retrofit Zeeweed 1500D

Aftermarket Solutions - 7'' Series

Memstar’s Aftermarket Solutions Series pressurized ultrafiltration (UF) hollow fiber modules are engineered drop-in replacement products that provide owners of existing UF installations with a higher quality alternative to replace the originally installed products. Products utilizing Memstar’s NIPS fiber technology are cost-effective, high-performing, and reliable.

Key Features and Benefits

• Outside to in filtration = Wider operating window allowing for higher turbidity feeds
• Extreme oxidant tolerance = Long life, challenging applications
• Industry leading membrane surface area = Fewer racks, smaller footprint

• No backwash = High recovery (>97% typical), less waste, lower CAPEX

Memstar – The World’s Largest Manufacturer of Hollow Fiber UF Membranes

Memstar ultrafiltration membranes – a trusted solution for efficient removal of particles, bacteria, and contaminants. Made with durable PVDF hollow fibers, they ensure clean, safe water across various applications, including drinking water treatment, RO pretreatment, and industrial reuse.
Also available as retrofits for easy replacement of existing modules.

Availability	In stock
Measure price	€1 391 / 1 pcs
€1 391 €1 683,11 incl. VAT

Parameters

Product code	478
Brand	Memstar
Category	Aftermarket Solutions - 7'' Series

Print Question

Description
Parameters
Brand
Files
Discussion

Description

UF-0717E

Specification	Value
Membrane Material	PVDF (NIPS)
Nominal Pore Size (µm)	0.02
Filtration Mode	Outside-in
Housing Material	uPVC/ABS
Potting Material	Epoxy/PU
Filtration Surface Area (m²) [ft²]	56 [603]
Typical Filtrate Flowrate (m³/hr) [gpm]	2.2 - 6.7 [9.7 - 29.5]
Column Volume (L) [gal]	20 [5.3]
Weight (kg) [lbs]	35 [77.2]
L1 (mm) [inches]	1,919 [75.6]
L2 (mm) [inches]	1,704 [67.1]
L3 (mm) [inches]	1,800 [70.9]
L4 (mm) [inches]	216 [8.5]
L5 (mm) [inches]	145 [5.7]
R (mm) [inches]	180 [7.1]
Concentrate Port	DN40
Filtrate Port	DN50
Feed/Discharge/Air Inlet Port	DN50

Weight

35 kg

Memstar UF-0717E (259.3 kB)

Be the first who will post an article to this item!

Add a comment

Do not fill out this field:

Vložením komentáře souhlasíte s podmínkami ochrany osobních údajů

Security check


Copy the text from the image

Memstar is a global leader in membrane technology, specializing in high-performance PVDF hollow fiber ultrafiltration (UF) membranes for both industrial and municipal water treatment. With over 220 successful installations worldwide treating more than 10 million m³ of water per day, Memstar’s proven solutions are trusted across the globe. Backed by more than 150 patents, the company’s industry-leading TIPS PVDF technology ensures exceptional reliability and performance.
