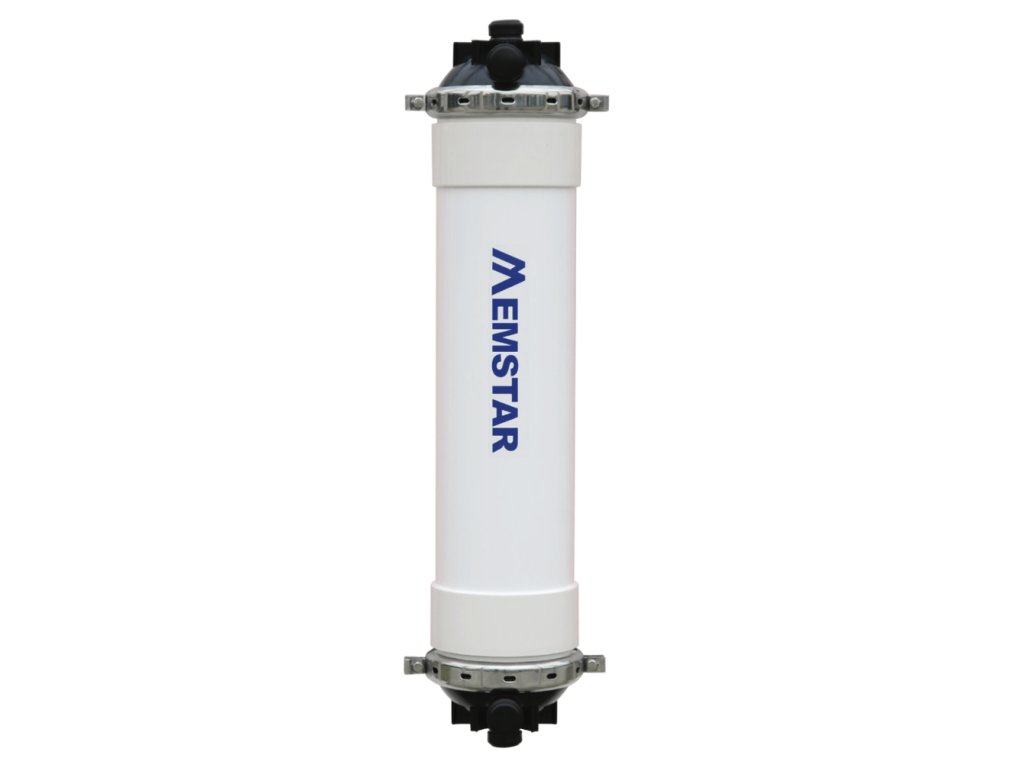

Memstar UF-0915E (51m2) - Retrofit Dupont IntegraTec SFP-2860



Aftermarket Solutions - 9'' Series

Memstar's Aftermarket Solutions Series pressurized ultrafiltration (UF) hollow fiber modules are engineered drop-in replacement products that provide owners of existing UF installations with a higher quality alternative to replace the originally installed products. Products utilizing Memstar's NIPS fiber technology are cost-effective, high-performing, and reliable.

Key Features and Benefits

• Engineered drop-in replacement modules = Simple, low effort, plug and play solution
• Optimized internal design = Reduced fouling by solids accumulation
• Outside to in filtration = Wider operating window allowing for higher turbidity feeds

Memstar – The World’s Largest Manufacturer of Hollow Fiber UF Membranes

Memstar ultrafiltration membranes – a trusted solution for efficient removal of particles, bacteria, and contaminants. Made with durable PVDF hollow fibers, they ensure clean, safe water across various applications, including drinking water treatment, RO pretreatment, and industrial reuse.
Also available as retrofits for easy replacement of existing modules.

Availability In stock
Measure price €1 126 / 1 pcs
€1 126
€1 362,46 incl. VAT


Parameters

Product code 472
Brand Memstar
Category Aftermarket Solutions - 9'' Series


Description

UF-0915E

Specification Value
Membrane Material PVDF (NIPS)
Nominal Pore Size (µm) 0.04
Filtration Mode Outside-in
Housing Material uPVC/ABS
Potting Material Epoxy/PU
Filtration Surface Area (m²) [ft²] 51 [549]
Typical Filtrate Flowrate (m³/hr) [gpm] 2.0 - 6.1 [8.9 - 26.9]
Column Volume (L) [gal] 35 [9.2]
Weight (kg) [lbs] 48 [106]
L1 (mm) [inches] 1,500 [59.1]
L2 (mm) [inches] 1,630 [64.2]
L3 (mm) [inches] 1,820 [71.7]
L4 (mm) [inches] 1,860 [73.2]
L5 (mm) [inches] 180 [7.1]
R (mm) [inches] 225 [8.9]
Influent/Discharge Port DN50
Filtrate Port DN50
Concentrate Port DN50
Air Inlet Port Ø10
Weight 48 kg
