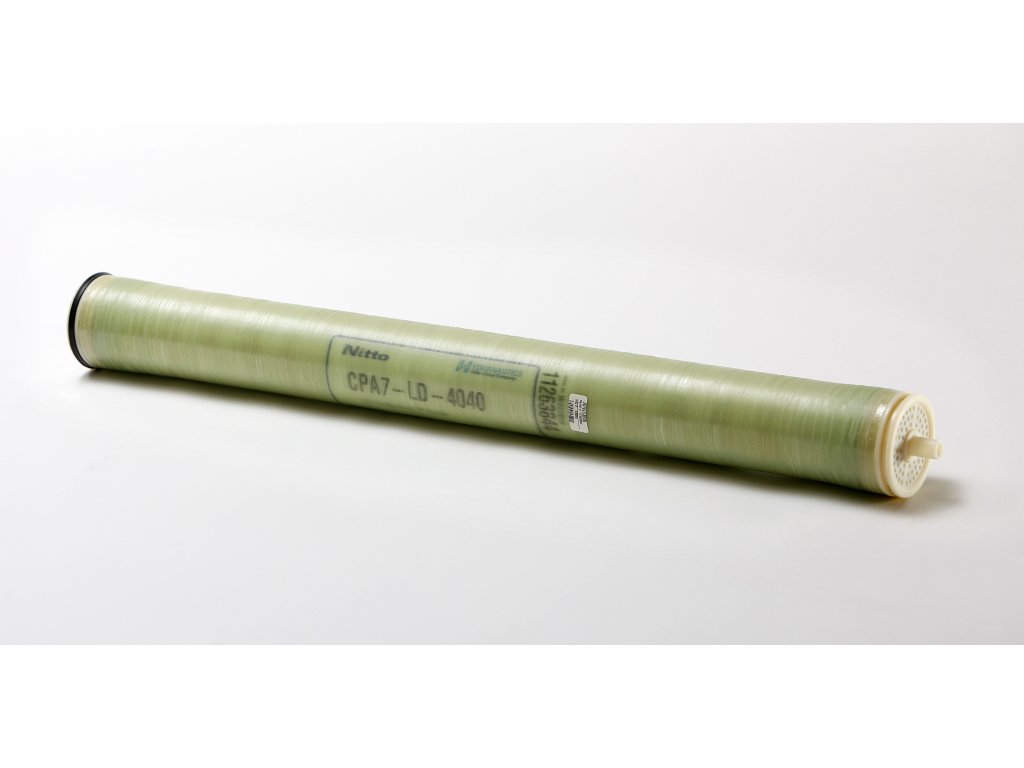

Hydranautics CPA7-LD 4040



The CPA7 series are the newest CPA brackish water reverse osmosis membranes offering the highest salt rejection in the industry. These ultra-high rejection reverse osmosis membranes are meant to fulfil your purest water quality requirements.

Where ultra-high purity water is required under difficult water conditions, the CPA7 reverse osmosis membranes supply the best combination of high rejection and high flow capability in a brackish water reverse osmosis element, compared to all commercial brackish water reverse osmosis elementsWhere ultra-high purity water is required under difficult water conditions, the CPA7 reverse osmosis membranes supply the best combination of high rejection and high flow capability in a brackish water reverse osmosis element, compared to all commercial brackish water reverse osmosis elements.

The LD variant of these membranes using LD Technology® are available in 4” (CPA7-LD-4040) and 8” (CPA7-LD) diameters. The CPA7 MAX reverse osmosis membrane has an active membrane surface area of 440 ft2 (40.9 m2) which reduces capital costs by requiring fewer pressure vessels and lesser floor space.

Availability In stock
€279
€337,59 incl. VAT

Product code 328
Brand Hydranautics
Brand's website membranes.com/
Category Brackish Water
Warranty 1 year

General Product Description*
Size: 4″ diameter & 40″ length
Permeate Flow: 2,300 gpd (8.71 m3 /d)
Salt Rejection: 99.8% (99.6% minimum)
Configuration: Low Fouling Spiral Wound
Membrane Polymer: Composite Polyamide

Product Use and Restrictions
Maximum Applied Pressure: 600 psig (4.14 MPa)
Maximum Chlorine Concentration: < 0.1 ppm
Maximum Operating Temperature: 113 °F (45 °C)
pH Range, Continuous (Cleaning): 2-11 (1-13)
Maximum Feedwater Turbidity: 1.0 NTU
Maximum Feedwater SDI (15 mins): 5.0
Maximum Feed Flow: 16 gpm (3.6 m3 /h)
Maximum Pressure Drop for Each Element: 15 psi (0.10 Mpa)


*Please refer to standard testing conditions and details in the enclosed datasheet
Weight 4.5 kg
